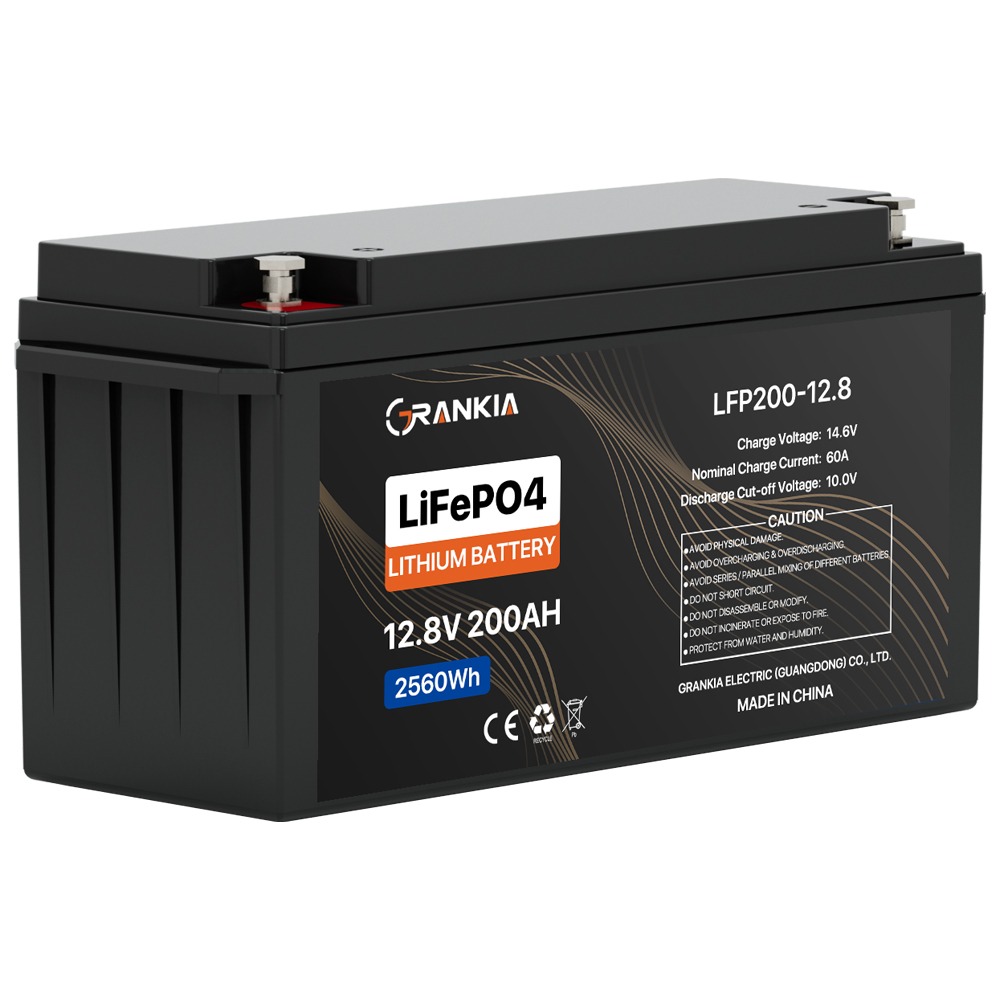

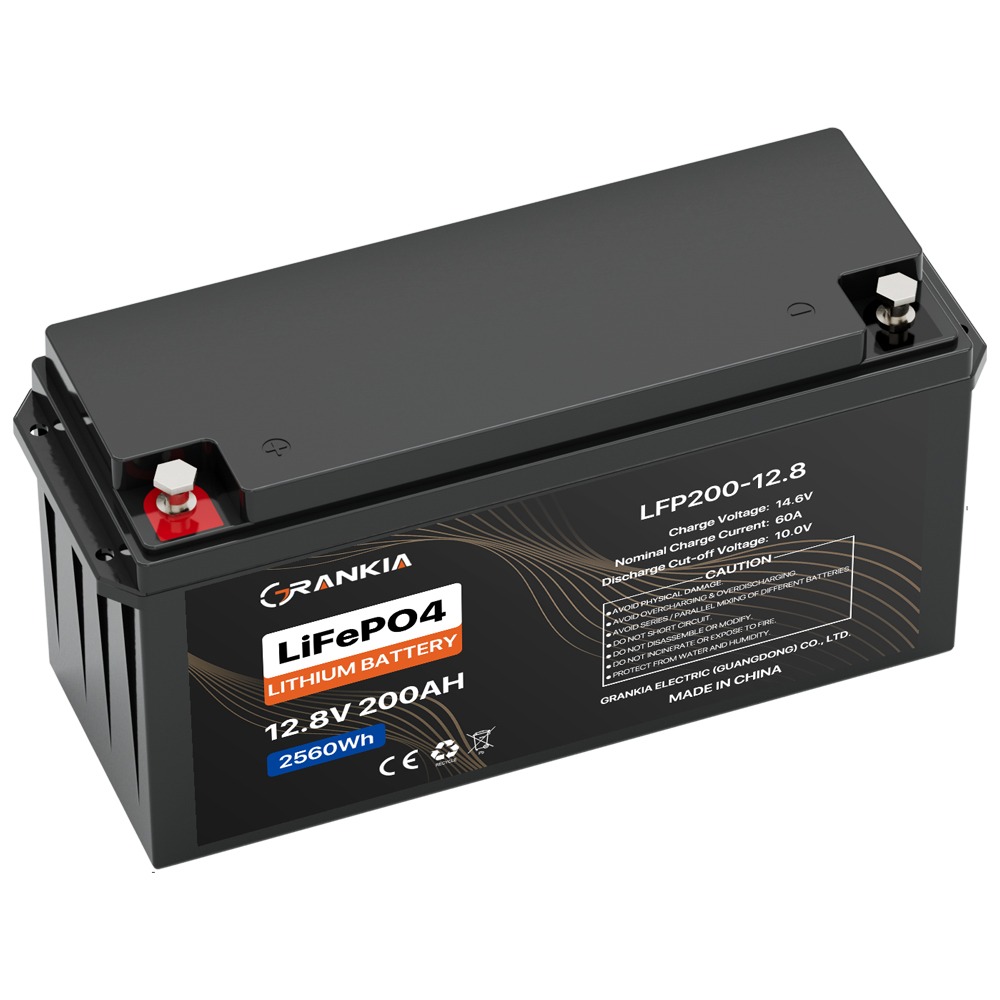

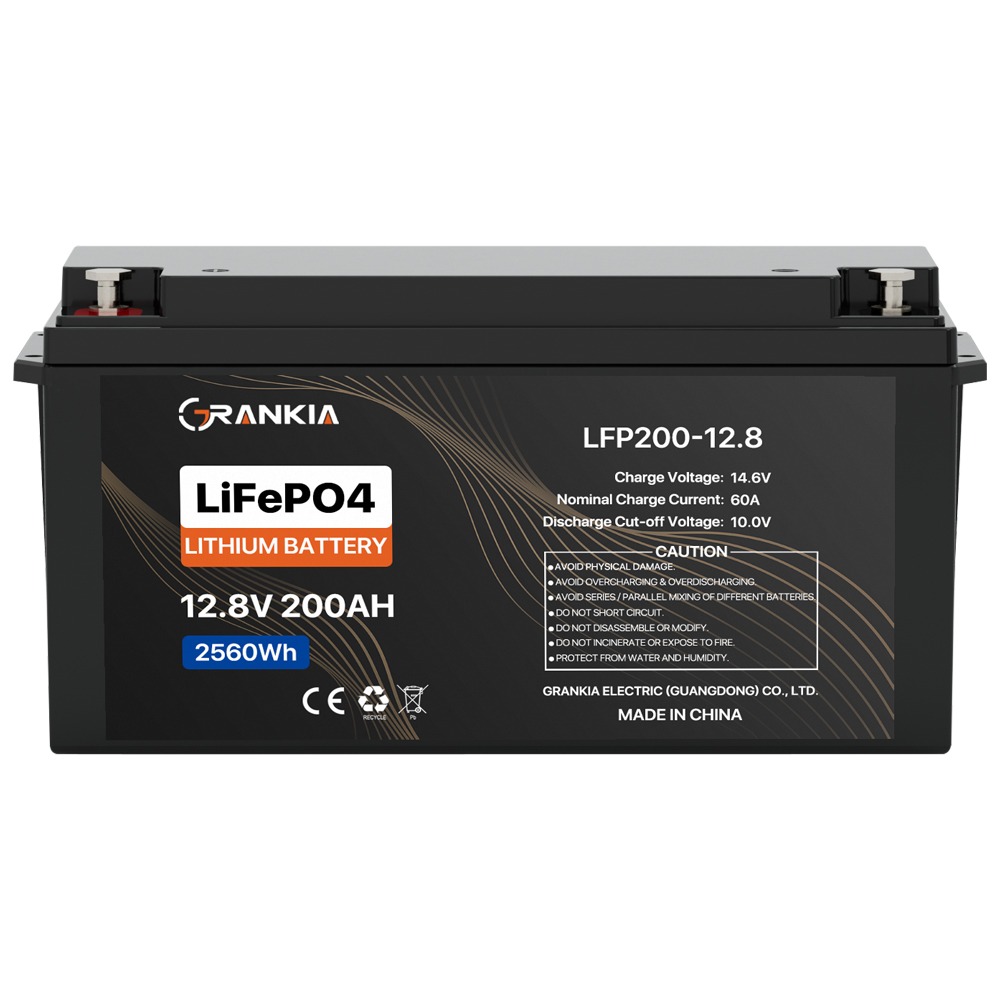

LFP200-12.8 rechargeable lifepo4 12v lithium 200ah battery

GRANKIA LFP200-12.8 rechargeable lifepo4 12v lithium 200ah battery provides a significant amount of energy storage, making it suitable for applications that require a high level of power output.

The use of LiFePO4 chemistry ensures a safe and stable battery operation, with a long cycle life and high discharge rate capability. The battery’s 12V nominal voltage makes it compatible with a wide range of applications, including RVs, boats, and off-grid solar systems.

The lifepo4 12v lithium 200ah battery is designed to be rechargeable, allowing users to recharge the battery multiple times and extend its lifespan.

Lithium 200AH Battery Features

Deep Cycle Capability

The lithium 200ah battery is designed to handle deep discharge cycles, making it suitable for applications where the battery may be frequently discharged to a low state of charge.

Compact Design

The battery’s compact design makes it easy to install and integrate into a variety of applications, including RVs, boats, and off-grid solar systems.

High Energy Density

The lithium 200ah battery has a high energy density, which means that it can store a large amount of energy relative to its size and weight.

Overcharge Protection

The battery has built-in overcharge protection, which prevents the battery from being overcharged and damaged.

Built-in BMS

Integrated smart BMS provides comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, and overheating, ensuring safe and efficient operation.

Typical Applications

Solar Energy Storage Systems

• Off-grid solar power systems

• Hybrid renewable energy systems

• Residential and commercial solar battery banks

Recreational Vehicles (RVs) & Campers

• House batteries for RVs and motorhomes

• Reliable energy for lighting, appliances, and electronics

Marine & Boats

• Power for trolling motors, fish finders, and onboard electronics

• Lightweight and vibration-resistant alternative to AGM or lead-acid

Off-Grid Cabins & Tiny Homes

• Long-lasting and low-maintenance energy storage

• Ideal for remote living with limited grid access

Technical Specifications

Nominal Voltage: 12.8V
Nominal Capacity: 200Ah
Energy: 2560Wh
Charge Voltage: 14.6V
Discharge Cut-off: 10.0V
Standard Charge Current: 40A
Max Continuous Discharge: 100A
Cycle Life: ≥ 6000 cycles (@80% DoD)
Operating Temperature:

• Charge: 0°C to 45°C

• Discharge: -20°C to 60°C

Precautions

Here are some things to pay attention to when using the LFP200-12.8 rechargeable LiFePO4 battery:

Charging

• Use a compatible charger specifically designed for LiFePO4 batteries.
• Charge the battery in a well-ventilated area, away from flammable materials.
• Avoid overcharging, as this can reduce the battery’s lifespan.
• Monitor the battery’s voltage and temperature during charging.

Discharging

• Avoid deep discharging (below 10% capacity) on a regular basis, as this can reduce the battery’s lifespan.
• Monitor the battery’s voltage and temperature during discharging.
• Avoid discharging the battery at high rates (above 1C) for extended periods.

Temperature

• Avoid exposing the battery to extreme temperatures (above 60°C or below -20°C).
• Monitor the battery’s temperature during charging and discharging.
• Avoid charging or discharging the battery at high temperatures (above 40°C).

Storage

• Store the battery in a cool, dry place (away from direct sunlight and moisture).
• Avoid storing the battery at extreme temperatures (above 40°C or below -20°C).
• Keep the battery away from flammable materials and ignition sources.

Wiring and connections

• Ensure that all wiring and connections are secure and meet the manufacturer’s specifications.
• Avoid using damaged or frayed wiring or connections.
• Use a fuse or circuit breaker to protect the battery and electrical system from overcurrent conditions.
