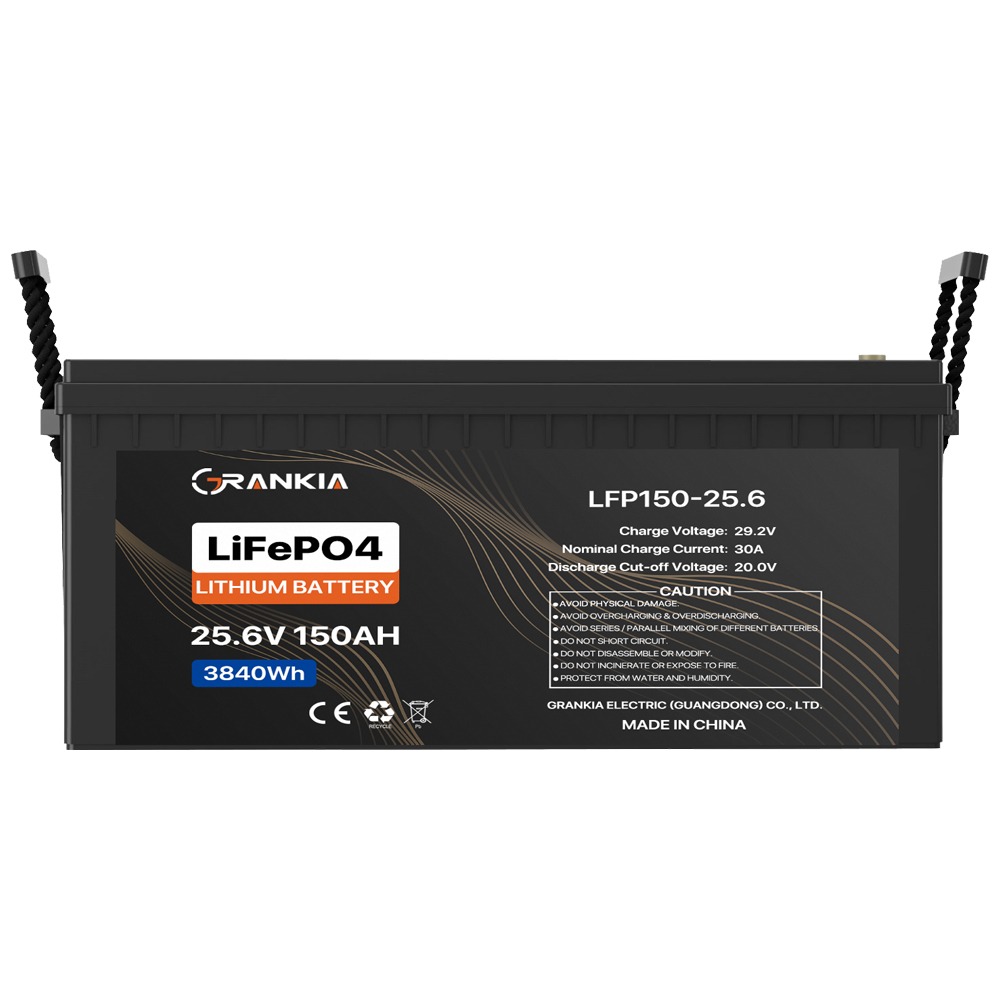

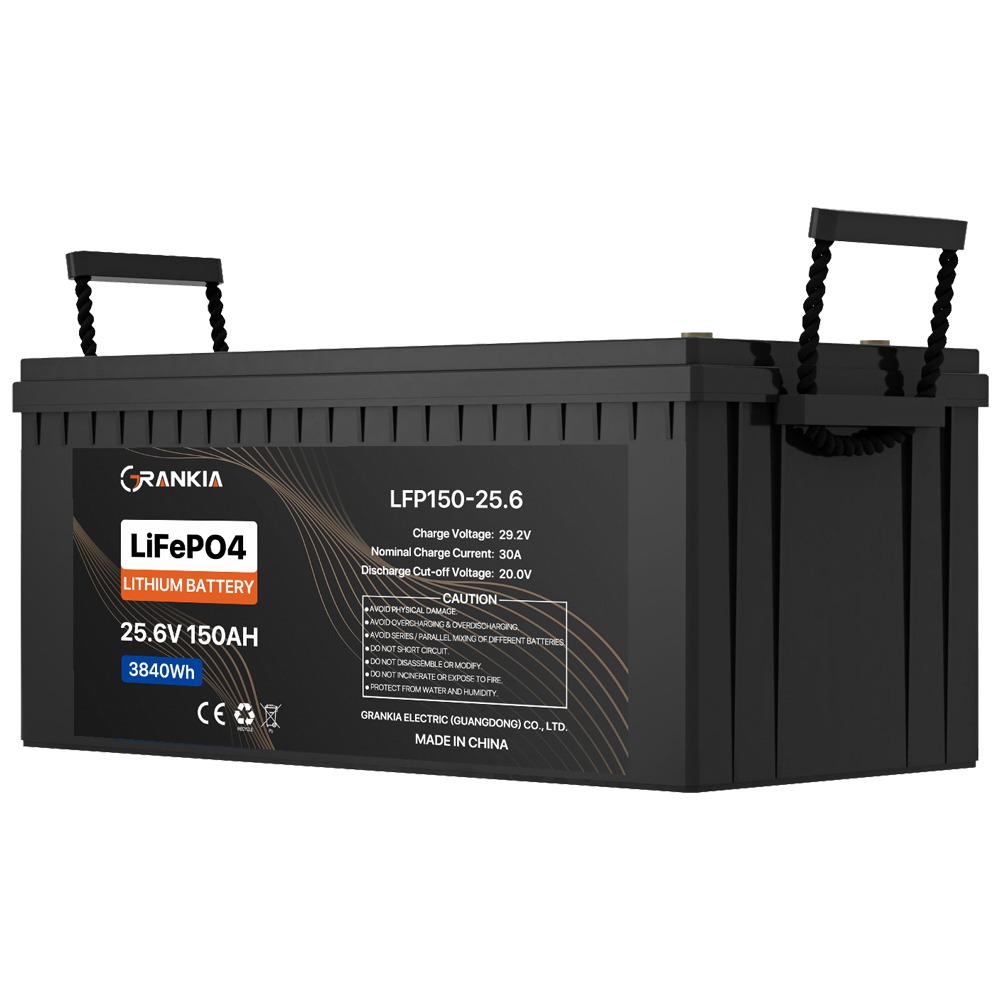

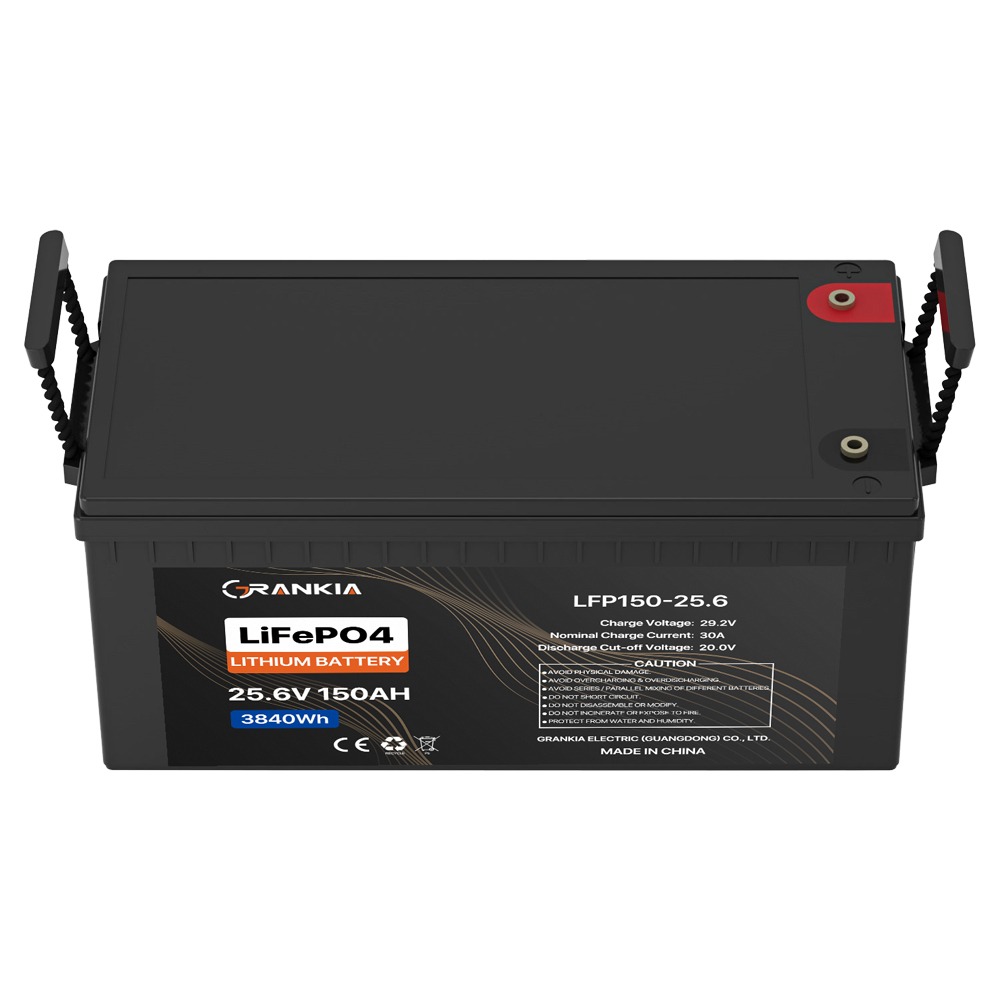

LFP150-25.6 lifepo4 rechargeable 150ah lithium battery 24v

GRANKIA LFP150-25.6 lifepo4 rechargeable 150ah lithium battery 24v is ideal for use in renewable energy systems, electric vehicles, marine applications, and backup power solutions.

The LiFePO4 150ah lithium battery 24v offers a significant energy density, allowing for a compact design without compromising on power output. This makes it suitable for space-constrained applications.

LiFePO4 chemistry is known for its thermal stability and safety. The 150ah lithium battery is equipped with built-in protection mechanisms against overcharging, over-discharging, and short circuits, ensuring safe operation.

24V 150AH Lithium Battery Features

Low Self-Discharge Rate

The battery has a low self-discharge rate, allowing it to retain its charge for extended periods when not in use. This feature is particularly advantageous for seasonal applications or backup power systems.

Built-in Battery Management System (BMS)

The integrated BMS monitors the battery’s health and performance, ensuring optimal charging and discharging. It protects against over-voltage, under-voltage, over-current, and temperature extremes, enhancing the battery’s safety and lifespan.

Versatile Charging Options

The battery can be charged using various methods, including solar panels, AC chargers, and DC-DC converters, providing flexibility in how users can recharge their systems.

Fast Charging Capabilities

Designed for rapid charging, the battery minimizes downtime. This fast charging attribute makes it ideal for applications requiring quick turnaround times, such as emergency backup systems or intermittent renewable energy setups.

Wide Operating Temperature Range

The 150ah lithium battery 24v can operate effectively in a wide range of temperatures, from -20°C to 60°C, making it suitable for various environmental conditions.

Applications

• Renewable Energy Systems: Ideal for solar and wind energy storage, providing reliable power for off-grid and grid-tied systems.
• Electric Vehicles: Perfect for electric bikes, scooters, and other electric vehicles, offering high performance and efficiency.
• Marine Use: Suitable for powering boats and marine equipment, ensuring reliable energy supply in marine environments.
• Backup Power: An excellent choice for uninterruptible power supply (UPS) systems, providing backup energy during outages.

Technical Specifications

Nominal Voltage: 25.6V
Nominal Capacity: 150Ah
Energy: 3840Wh
Charge Voltage: 29.2V
Discharge Cut-off: 20.0V
Standard Charge Current: 30A
Max Continuous Discharge: 100A
Cycle Life: ≥ 6000 cycles (@80% DoD)
Operating Temperature:

• Charge: 0°C to 45°C

• Discharge: -20°C to 60°C

How to Use

Using the LFP150-25.6 150ah lithium battery effectively involves several steps, from installation to maintenance. Here’s a comprehensive guide on how to use this battery:

1. Installation

• Choose a Suitable Location: Install the battery in a dry, well-ventilated area away from direct sunlight and extreme temperatures. Ensure the location is stable and secure to prevent movement.
• Mounting: If required, securely mount the battery using appropriate brackets or enclosures to prevent it from shifting during use.
• Connect to the System:
  • Wiring: Use appropriate gauge wires to connect the battery to your system. Ensure that the connections are tight and secure to prevent any voltage drop or overheating.
  • Polarity: Always connect the positive terminal of the battery to the positive terminal of the load or inverter and the negative terminal to the negative terminal. Double-check the connections to avoid short circuits.

2. Charging the Battery

• Select a Compatible Charger: Use a charger that is compatible with LiFePO4 batteries and has the correct voltage and current ratings. The charger should have a built-in Battery Management System (BMS) for optimal charging.
• Connect the Charger: Plug the charger into a power source and connect it to the battery terminals, ensuring correct polarity.
• Monitor Charging: Keep an eye on the charging process. The battery management system will typically handle the charging process, but it’s good practice to monitor the voltage and temperature during charging.
• Charging Time: Depending on the state of charge and the charger’s output, charging time may vary. A fully discharged battery may take several hours to charge fully.

3. Using the Battery

• Powering Devices: Once charged, the battery can be used to power various devices. Connect your load (inverter, appliances, etc.) to the battery terminals, ensuring correct polarity.
• Monitor Performance: Regularly check the battery’s voltage and current output during use. The BMS will help manage the battery’s performance, but monitoring ensures everything is functioning correctly.

4. Maintenance

• Regular Inspections: Periodically inspect the battery for any signs of damage, corrosion, or loose connections. Ensure that the terminals are clean and free from debris.
• Temperature Monitoring: Keep an eye on the operating temperature of the battery. If it becomes excessively hot, disconnect it and allow it to cool down.
• Storage: If the battery will not be used for an extended period, store it in a cool, dry place. It’s recommended to charge the battery to about 50% before long-term storage and check the charge level every few months.

5. Safety Precautions

• Avoid Over-Discharging: Do not discharge the battery below its recommended voltage level, as this can damage the battery and reduce its lifespan.
• Use Protective Gear: When handling the battery, wear appropriate protective gear, such as gloves and safety glasses, to prevent injury.
