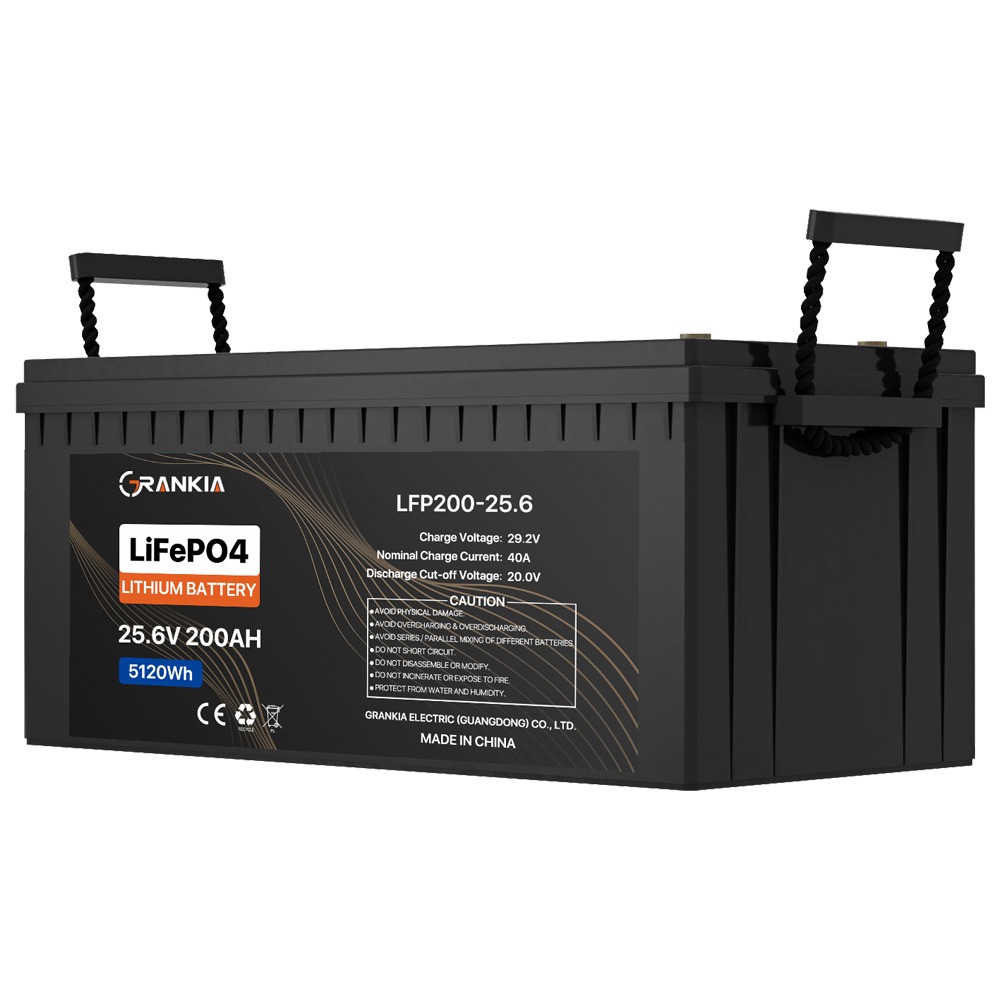

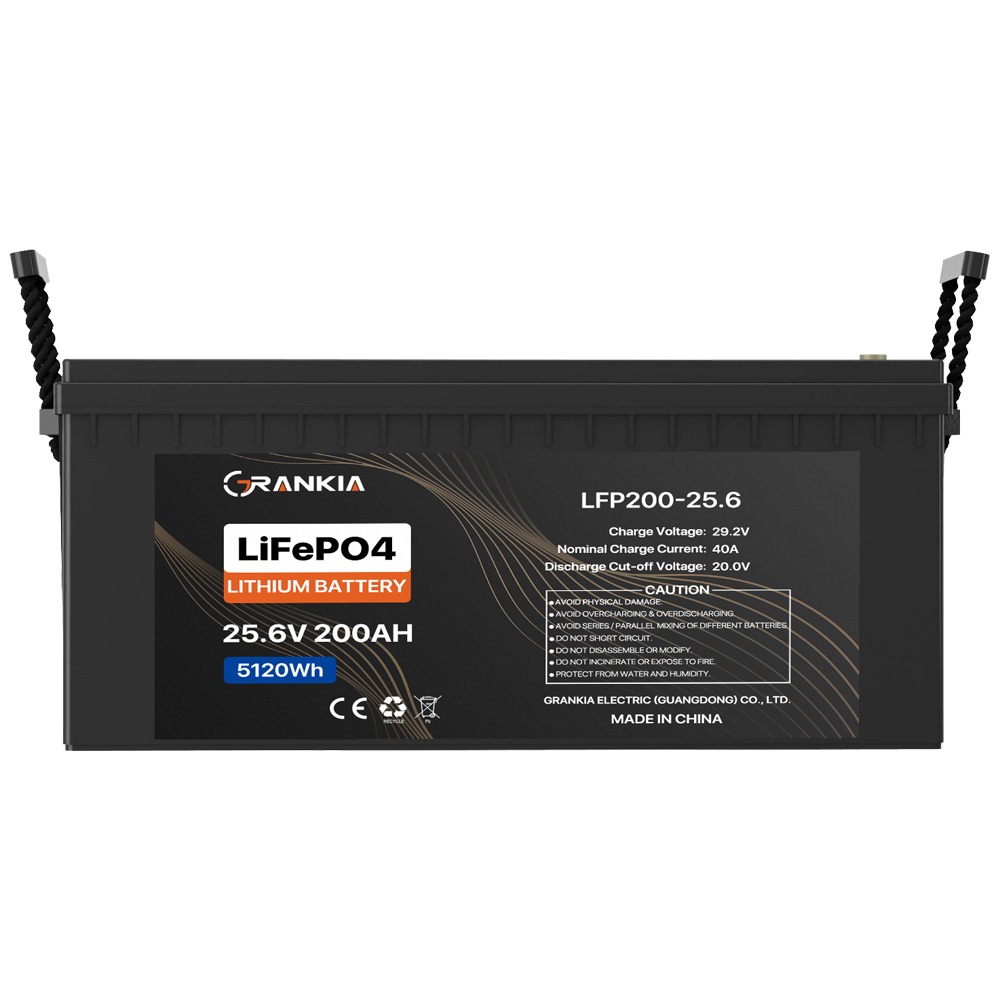

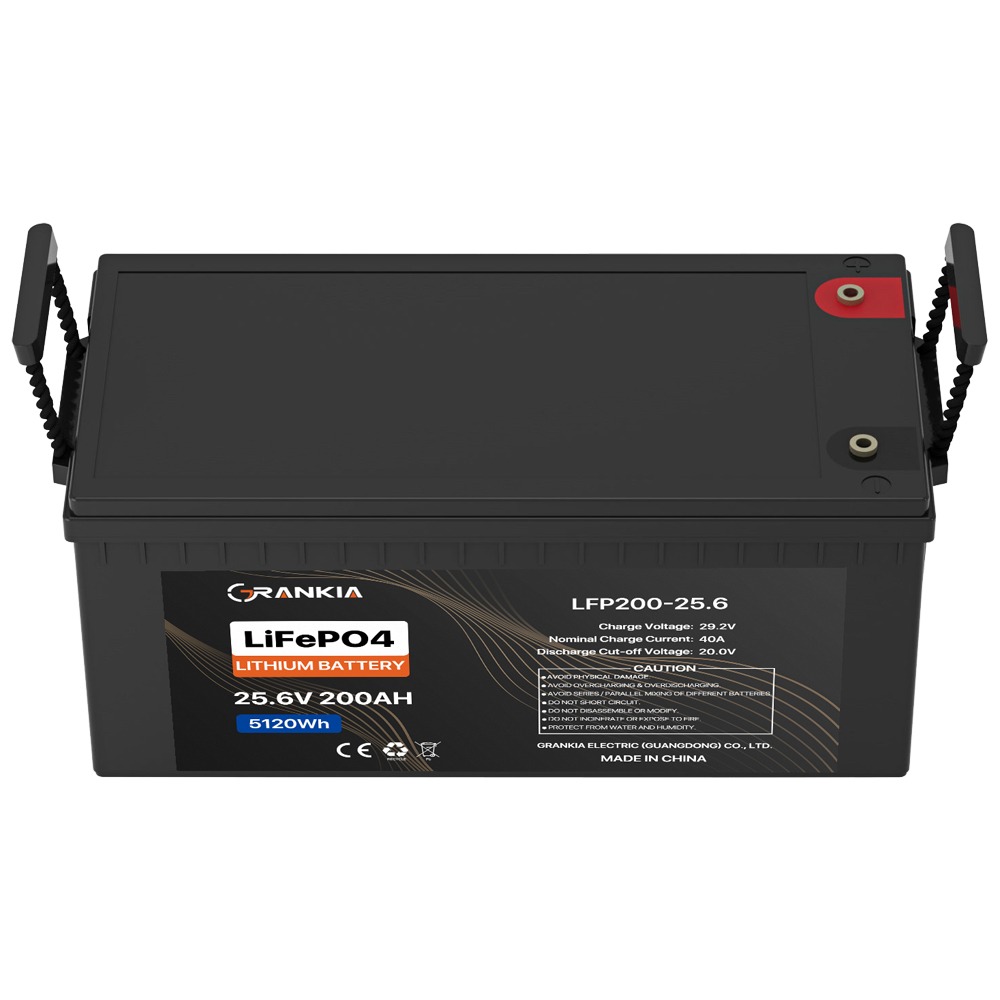

LFP200-25.6 best 5120wh 24v lifepo4 lithium ion battery 200ah

GRANKIA LFP200-25.6 best 5120wh 24v lifepo4 lithium ion battery 200ah is a top-tier energy storage solution that combines safety, efficiency, and versatility. Its long cycle life, fast charging capabilities, and environmentally friendly design make it an excellent choice for a wide range of applications.

The LiFePO4 lithium ion battery 200ah can endure over 6000 charge and discharge cycles, ensuring a long lifespan and reducing the need for frequent replacements.

LiFePO4 chemistry is known for its thermal stability and safety. The 150ah lithium battery is equipped with built-in protection mechanisms against overcharging, over-discharging, and short circuits, ensuring safe operation.

LiFePO4 Lithium ion Battery 200AH Features

Fast Charging

This battery supports fast charging capabilities, allowing users to recharge quickly and efficiently. This feature is particularly beneficial for applications requiring rapid turnaround times.

High Energy Density

The LiFePO4 lithium ion battery 200ah offers an impressive energy density of 5120Wh, making it suitable for a wide range of applications. Its compact design allows for easy integration into various systems without taking up excessive space.

Built-in Battery Management System (BMS)

The lithium battery 200ah is equipped with an advanced Battery Management System that monitors the battery’s health, voltage, temperature, and state of charge. This system ensures optimal performance, enhances safety, and prolongs the battery’s lifespan by preventing overcharging, over-discharging, and short circuits.

Lightweight and Compact

Weighing significantly less than traditional lead-acid batteries, the lithium ion battery 200ah is easier to handle and install. Its compact size also makes it ideal for space-constrained environments.

Low Self-Discharge Rate

The LiFePO4 li ion battery 200ah has a low self-discharge rate, which means it retains its charge for extended periods when not in use. This characteristic is particularly beneficial for applications where the battery may sit idle for long durations, such as in backup power systems.

High Discharge Rate

This battery supports high discharge rates, allowing it to deliver power quickly when needed. This feature is particularly advantageous for applications that require bursts of energy, such as starting motors or powering high-demand devices.

Applications

• Renewable Energy Systems: Ideal for solar and wind energy storage, providing reliable power for off-grid and grid-tied systems.
• Electric Vehicles: Perfect for electric bikes, scooters, and other electric vehicles, offering high performance and efficiency.
• Marine Use: Suitable for powering boats and marine equipment, ensuring reliable energy supply in marine environments.
• Backup Power: An excellent choice for uninterruptible power supply (UPS) systems, providing backup energy during outages.

Technical Specifications

Nominal Voltage: 25.6V
Nominal Capacity: 200Ah
Energy: 5120Wh
Charge Voltage: 29.2V
Discharge Cut-off: 20.0V
Standard Charge Current: 40A
Max Continuous Discharge: 100A
Cycle Life: ≥ 6000 cycles (@80% DoD)
Operating Temperature:

• Charge: 0°C to 45°C

• Discharge: -20°C to 60°C

How to Use

Using the LiFePO4 lithium battery effectively involves several steps, from installation to maintenance. Here’s a comprehensive guide on how to use this battery:

1. Installation

• Choose a Suitable Location: Install the battery in a dry, well-ventilated area away from direct sunlight and extreme temperatures. Ensure the location is stable and secure to prevent movement.
• Mounting: If required, securely mount the battery using appropriate brackets or enclosures to prevent it from shifting during use.
• Connect to the System:
  • Wiring: Use appropriate gauge wires to connect the battery to your system. Ensure that the connections are tight and secure to prevent any voltage drop or overheating.
  • Polarity: Always connect the positive terminal of the battery to the positive terminal of the load or inverter and the negative terminal to the negative terminal. Double-check the connections to avoid short circuits.

2. Charging the Battery

• Select a Compatible Charger: Use a charger that is compatible with LiFePO4 batteries and has the correct voltage and current ratings. The charger should have a built-in Battery Management System (BMS) for optimal charging.
• Connect the Charger: Plug the charger into a power source and connect it to the battery terminals, ensuring correct polarity.
• Monitor Charging: Keep an eye on the charging process. The battery management system will typically handle the charging process, but it’s good practice to monitor the voltage and temperature during charging.
• Charging Time: Depending on the state of charge and the charger’s output, charging time may vary. A fully discharged battery may take several hours to charge fully.

3. Using the Battery

• Powering Devices: Once charged, the battery can be used to power various devices. Connect your load (inverter, appliances, etc.) to the battery terminals, ensuring correct polarity.
• Monitor Performance: Regularly check the battery’s voltage and current output during use. The BMS will help manage the battery’s performance, but monitoring ensures everything is functioning correctly.

4. Maintenance

• Regular Inspections: Periodically inspect the battery for any signs of damage, corrosion, or loose connections. Ensure that the terminals are clean and free from debris.
• Temperature Monitoring: Keep an eye on the operating temperature of the battery. If it becomes excessively hot, disconnect it and allow it to cool down.
• Storage: If the battery will not be used for an extended period, store it in a cool, dry place. It’s recommended to charge the battery to about 50% before long-term storage and check the charge level every few months.

5. Safety Precautions

• Avoid Over-Discharging: Do not discharge the battery below its recommended voltage level, as this can damage the battery and reduce its lifespan.
• Use Protective Gear: When handling the battery, wear appropriate protective gear, such as gloves and safety glasses, to prevent injury.
